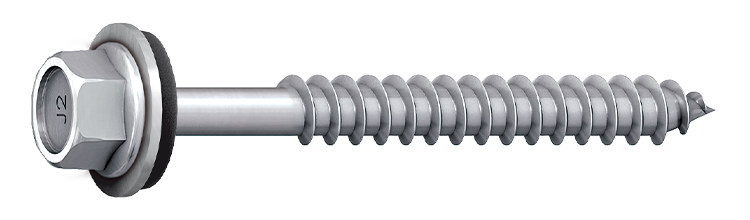

Sandwichpanelskruv JA3-6,5

För trä/limträ

För montering av sandwichpanel mot trä/limträ

Gängformad skruv för trä/limträ. Kan användas för många applikationer, men är speciellt lämplig för sandwichpaneler.

Material:  Rostfritt stål A2
Environment:  För användning utomhus
Implementation:  Sexkantshuvud och EPDM-bricka. Gängsläpp under skallen.
Corrosivity classification
Rostfritt stål
Sandwichelement mot trä
ETA-bedömd

Downloads

Product Sheet

Sandwichpanelskruv JA3-6,5.pdf
Artnr Dimension, mm Diameter, mm Längd, L, mm Klämlängd, mm Antal Lagerstatus
840190 6,5x100 6,5 100 50 200
Contact us
Additional information
Artnr
840190
Dimension, mm
6,5x100
Diameter, mm
6,5
Längd, L, mm
100
Klämlängd, mm
50
BrickaØ, dk, mm
E29
SW
3/8"
Hållfasthet, kN
T13
Material
Rostfritt stål A2
Korrosivitetsklass
C4
ETA_DoP
EJOT 1-001-130177-2018, ETA-13/0177
Benämning
Super Sandwich JA3 6,5x100 E29 3/8"
EAN
7319618401905
Antal
200
Picture of Super Sandwich JA3 6,5x100 E29 3/8"
Download image
Product data sheet
840191 6,5x125 6,5 125 80 150
Contact us
Additional information
Artnr
840191
Dimension, mm
6,5x125
Diameter, mm
6,5
Längd, L, mm
125
Klämlängd, mm
80
BrickaØ, dk, mm
E29
SW
3/8"
Hållfasthet, kN
T13
Material
Rostfritt stål A2
Korrosivitetsklass
C4
ETA_DoP
EJOT 1-001-130177-2018, ETA-13/0177
Benämning
Super Sandwich JA3 6,5x125 E29 3/8"
EAN
7319618401912
Antal
150
Picture of Super Sandwich JA3 6,5x125 E29 3/8"
Download image
Product data sheet
840192 6,5x150 6,5 150 100 50
Contact us
Additional information
Artnr
840192
Dimension, mm
6,5x150
Diameter, mm
6,5
Längd, L, mm
150
Klämlängd, mm
100
BrickaØ, dk, mm
E29
SW
3/8"
Hållfasthet, kN
T13
Material
Rostfritt stål A2
Korrosivitetsklass
C4
ETA_DoP
EJOT 1-001-130177-2018, ETA-13/0177
Benämning
Super Sandwich JA3 6,5x150 E29 3/8"
EAN
7319618401929
Antal
50
Picture of Super Sandwich JA3 6,5x150 E29 3/8"
Download image
Product data sheet
840193 6,5x175 6,5 175 120 50
In stock
Additional information
Artnr
840193
Dimension, mm
6,5x175
Diameter, mm
6,5
Längd, L, mm
175
Klämlängd, mm
120
BrickaØ, dk, mm
E29
SW
3/8"
Hållfasthet, kN
T13
Material
Rostfritt stål A2
Korrosivitetsklass
C4
ETA_DoP
EJOT 1-001-130177-2018, ETA-13/0177
Benämning
Super Sandwich JA3 6,5x175 E29 3/8"
EAN
7319618401936
Antal
50
Picture of Super Sandwich JA3 6,5x175 E29 3/8"
Download image
Product data sheet
840194 6,5x200 6,5 200 150 50
In stock
Additional information
Artnr
840194
Dimension, mm
6,5x200
Diameter, mm
6,5
Längd, L, mm
200
Klämlängd, mm
150
BrickaØ, dk, mm
E29
SW
3/8"
Hållfasthet, kN
T13
Material
Rostfritt stål A2
Korrosivitetsklass
C4
ETA_DoP
EJOT 1-001-130177-2018, ETA-13/0177
Benämning
Super Sandwich JA3 6,5x200 E29 3/8"
EAN
7319618401943
Antal
50
Picture of Super Sandwich JA3 6,5x200 E29 3/8"
Download image
Product data sheet
840197 6,5x230 6,5 230 180 50
Contact us
Additional information
Artnr
840197
Dimension, mm
6,5x230
Diameter, mm
6,5
Längd, L, mm
230
Klämlängd, mm
180
BrickaØ, dk, mm
E29
SW
3/8"
Hållfasthet, kN
T13
Material
Rostfritt stål A2
Korrosivitetsklass
C4
ETA_DoP
EJOT 1-001-130177-2018, ETA-13/0177
Benämning
Super Sandwich JA3 6,5x230 E29 3/8"
EAN
7319618401974
Antal
50
Picture of Super Sandwich JA3 6,5x230 E29 3/8"
Download image
Product data sheet
840199 6,5x260 6,5 260 210 50
Contact us
Additional information
Artnr
840199
Dimension, mm
6,5x260
Diameter, mm
6,5
Längd, L, mm
260
Klämlängd, mm
210
BrickaØ, dk, mm
E29
SW
3/8"
Hållfasthet, kN
T13
Material
Rostfritt stål A2
Korrosivitetsklass
C4
ETA_DoP
EJOT 1-001-130177-2018, ETA-13/0177
Benämning
Super Sandwich JA3 6,5x260 E29 3/8"
EAN
7319618401998
Antal
50
Picture of Super Sandwich JA3 6,5x260 E29 3/8"
Download image
Product data sheet
840196 6,5x290 6,5 290 240 50
Contact us
Additional information
Artnr
840196
Dimension, mm
6,5x290
Diameter, mm
6,5
Längd, L, mm
290
Klämlängd, mm
240
BrickaØ, dk, mm
E29
SW
3/8"
Hållfasthet, kN
T13
Material
Rostfritt stål A2
Korrosivitetsklass
C4
ETA_DoP
EJOT 1-001-130177-2018, ETA-13/0177
Benämning
Super Sandwich JA3 6,5x290 E19 3/8"
EAN
7319618401967
Antal
50
Picture of Super Sandwich JA3 6,5x290 E19 3/8"
Download image
Product data sheet
